Wireframe-Method Ergonomic Mouse
Sculpting a hand-friendly shell from control curves, not blocks.
- Year
- 2024
- Software
- SolidWorks
- Focus
- Surface Modeling · Industrial Design · Ergonomics
Overview
This was the first project I built using the wireframe method — defining a form through a skeleton of guide curves and then lofting surfaces across them, rather than stacking extrudes and fillets.
The goal was a mouse shell that feels resolved in the hand: continuous transitions, no visible seams between the palm rest and the flanks, and a silhouette that reads as a single sweep from any angle.
Choosing a consumer object was deliberate. Ergonomic shapes hide nothing — any discontinuity in curvature shows up immediately as a highlight break, so it forced me to build clean geometry from the start.
Engineering process
Decisions, iterations, and tradeoffs.
- 01
Curves before surfaces
I laid out the profile and section curves first and resolved the overall stance in wireframe before creating a single face. Getting the guide curves tangent and proportional up front meant the surfaces lofted cleanly instead of fighting the geometry later.
- 02
Curvature over corners
Every transition targets curvature continuity, not just tangency. Zebra-stripe evaluation drove several rebuilds of the flank surface until the reflections flowed unbroken across the top and down the sides.
- 03
Designing for the hand
The palm crown and thumb relief were tuned against a reference grip so the high point sits under the palm and the sides taper for the fingertips — form following the ergonomic constraint rather than the modeling convenience.

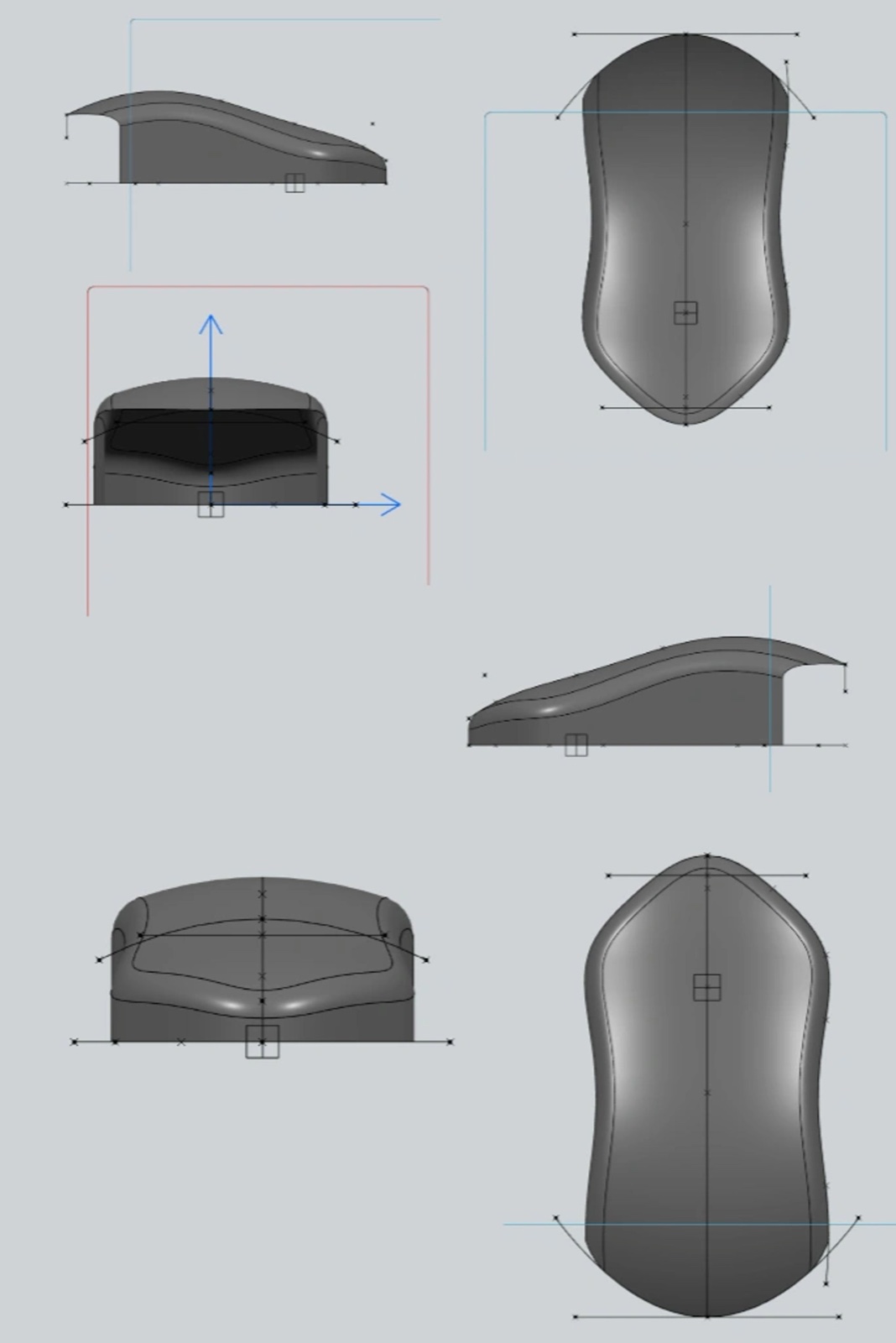

Gallery
CAD · Surfacing · Renders
What I learned
Time spent perfecting the wireframe is repaid many times over once you start surfacing — a clean skeleton makes clean skin.
Curvature continuity is a discipline, not a checkbox: reflection analysis catches problems the eye rationalizes away.
Next time I would build the underside and parting line in parallel with the top so the shell is manufacturable, not just beautiful.
